Pictorial Assembly Guide for CRC65, rev0

Start assembly with lowest height components first, the tallest components last.

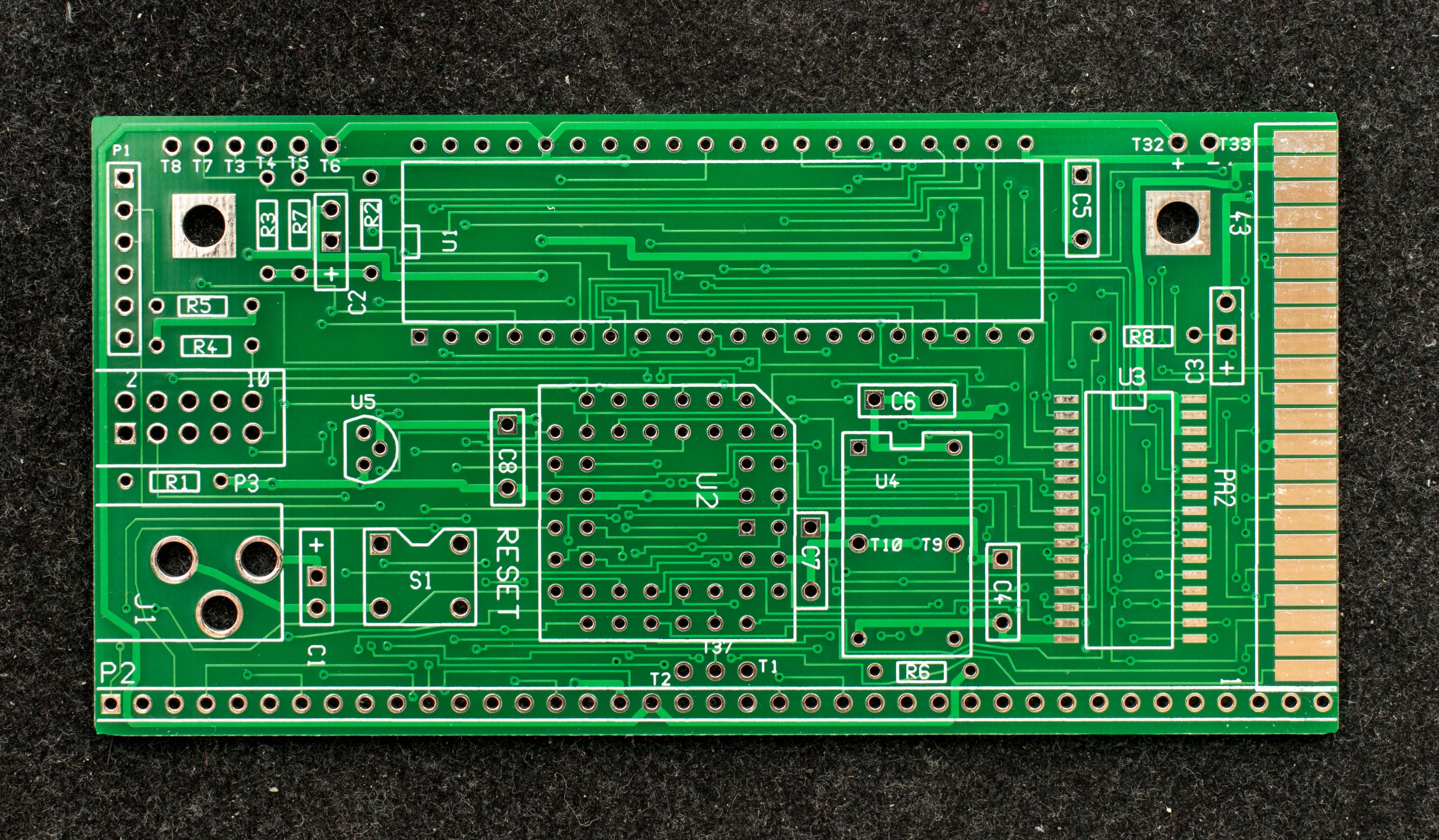

Blank board, component side.

Blank board, solder side

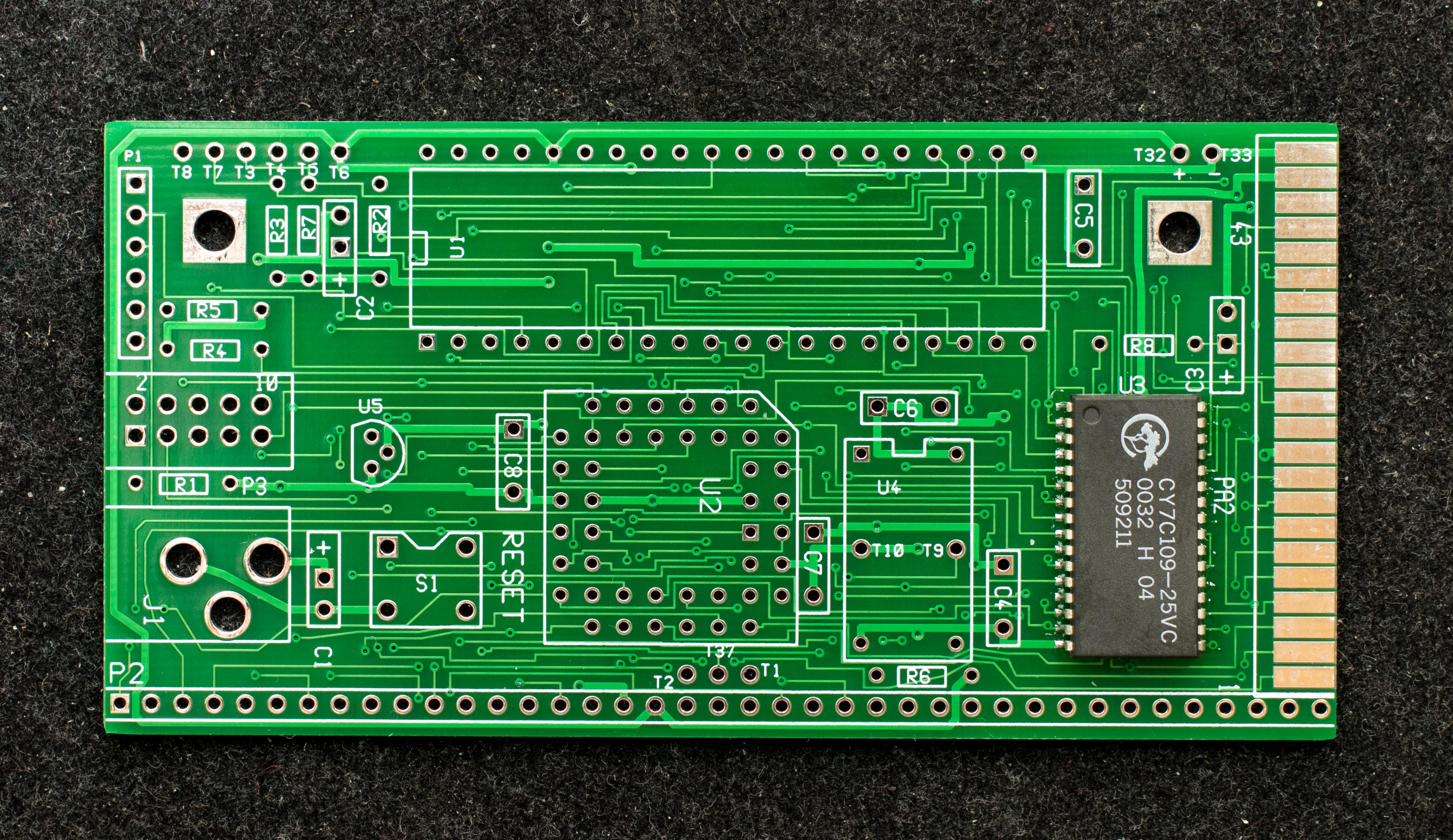

Assemble the SOJ32 CY7C109 RAM first,

Assemble 1/8W resistors,

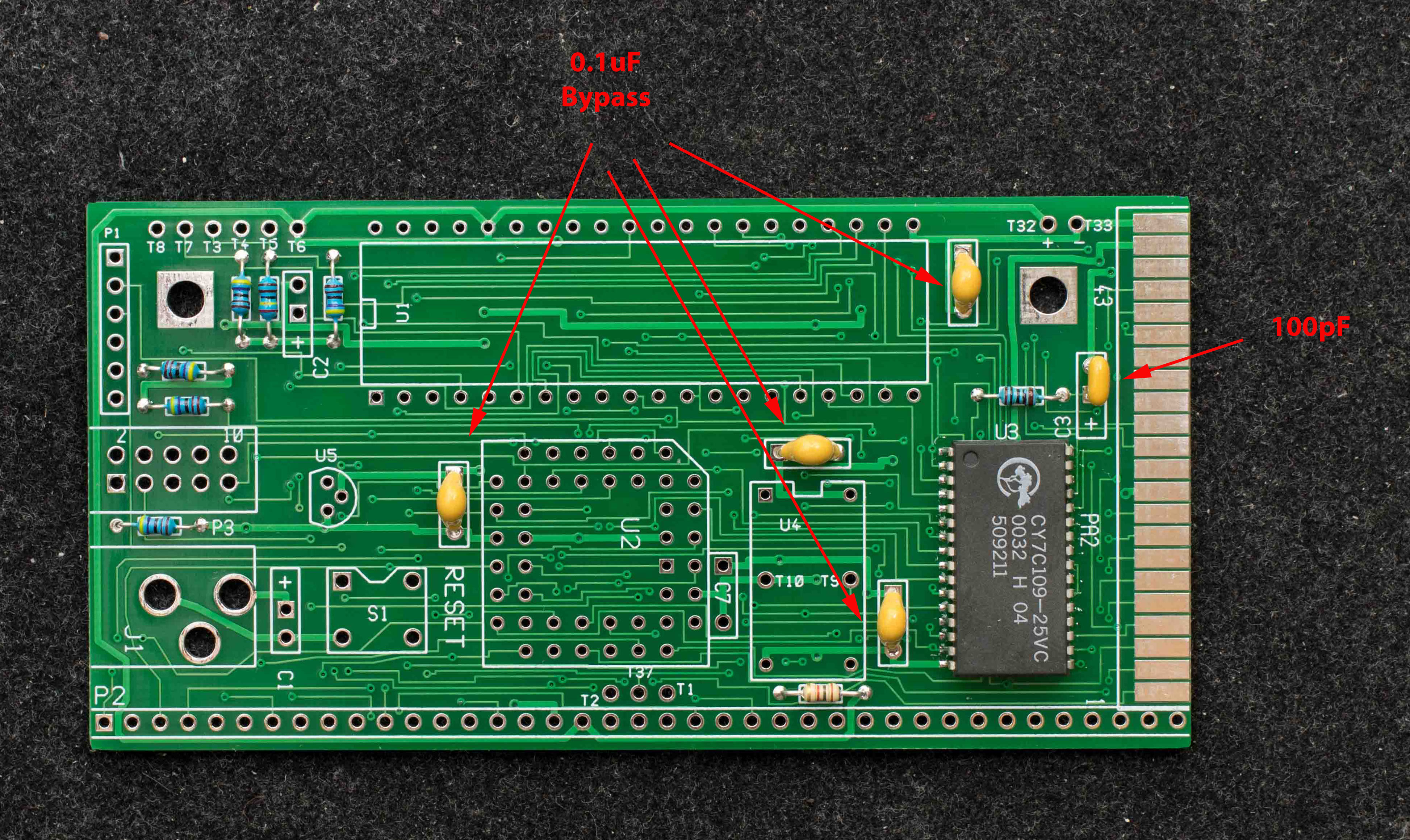

Assemble bypass caps and 100pF ceramic cap,

Assemble the serial port header,

Add sockets for 6502, CPLD, and oscillator,

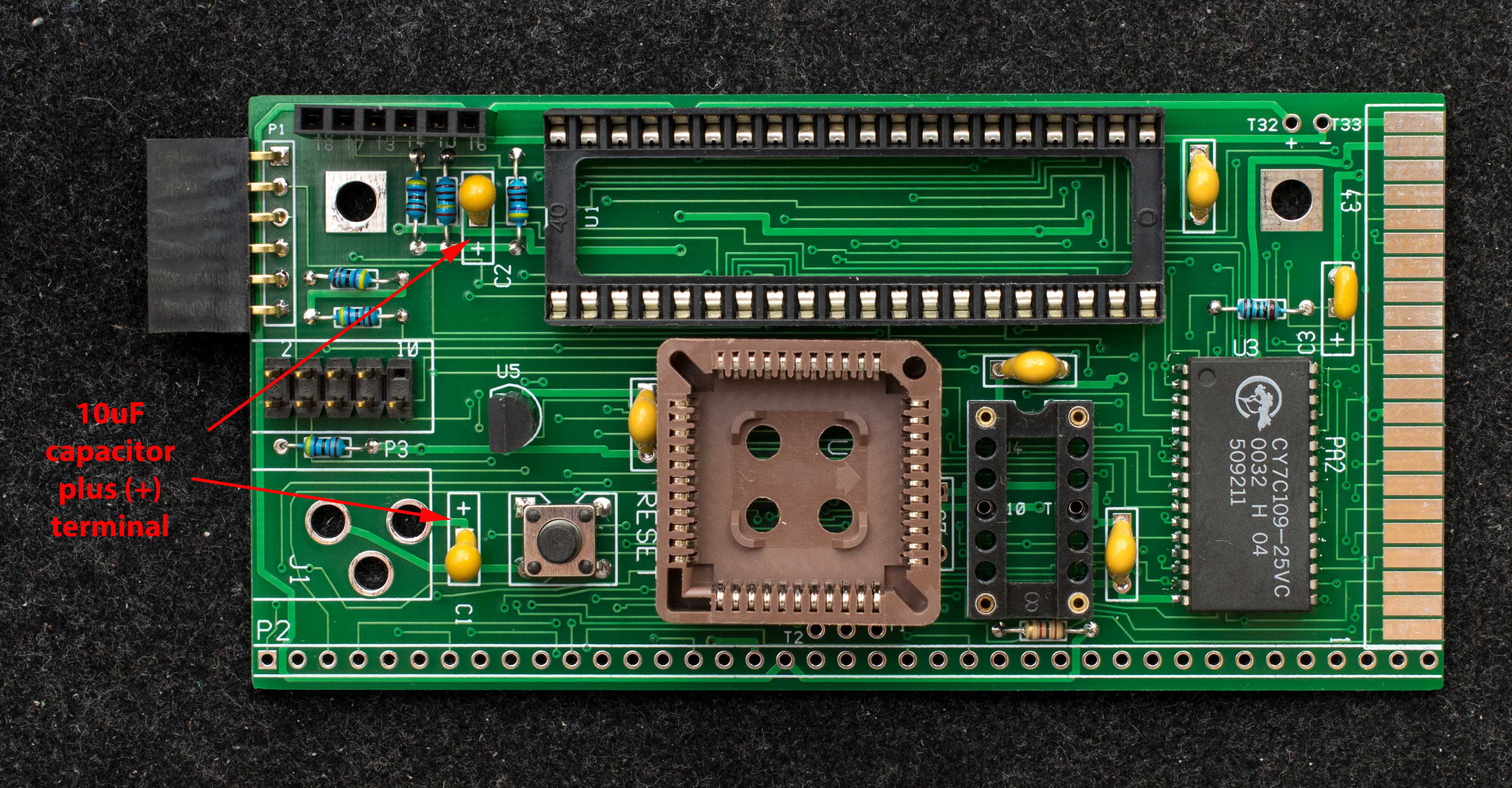

Assemble the 10uF tantalum capacitors. Observe the polarity of the capacitors,

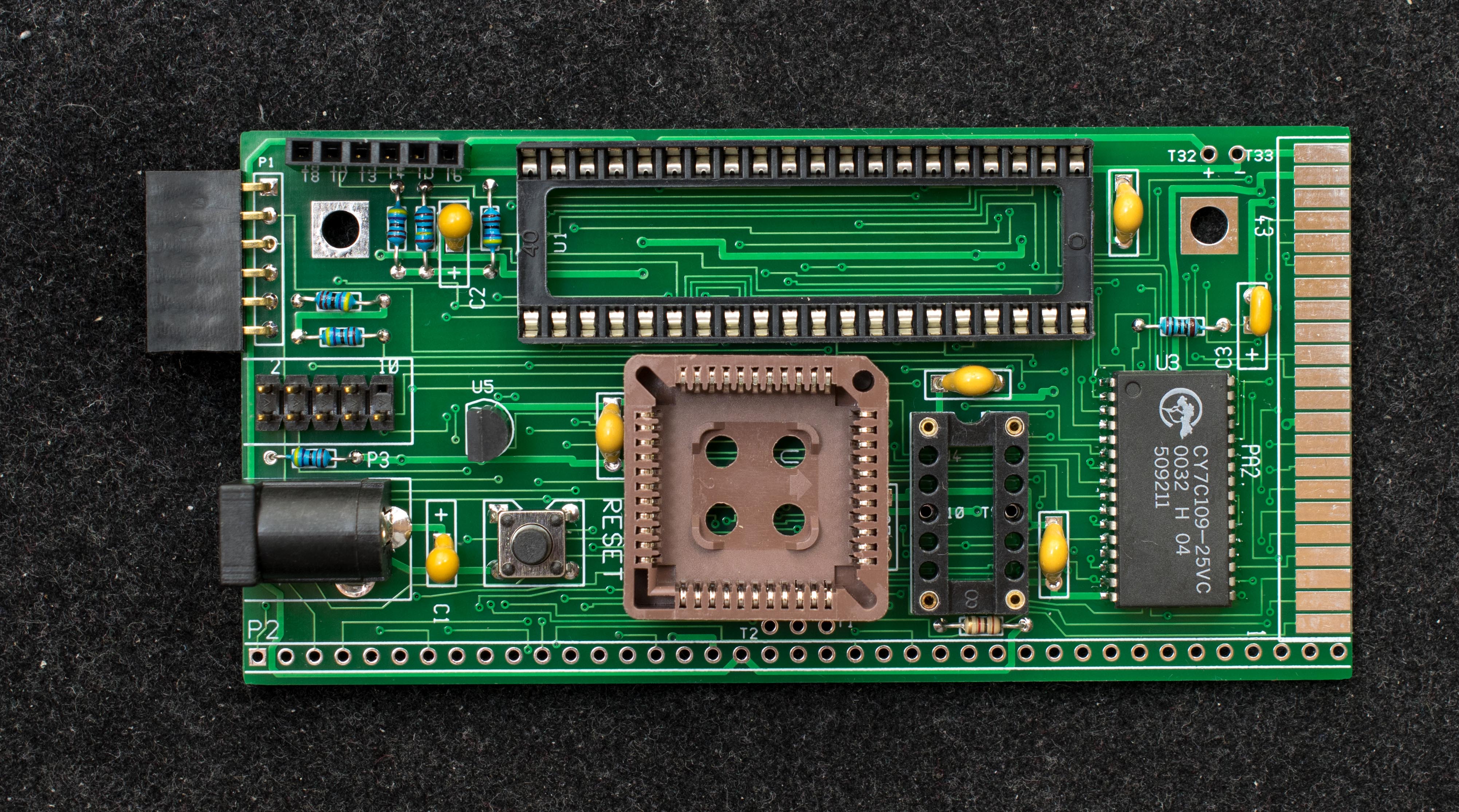

Finish up except the compact flash adapter.
